Live a life without limits! Take your boat, RV, truck, or trailer off-the-grid with Dakota Lithium. This kit offers enough power to charge a single 100Ah battery. Designed for decades of rugged use in extreme conditions, this flexible, marine grade solar panel is waterproof, flexible for curved roofs and boat decks.
Description
Live a life without limits! For unlimited freedom, take your boat, RV, truck, or trailer off-the-grid with Dakota Lithium. This kit offers enough power to charge most single 12-volt battery banks (combine 100 watts of solar with 100Ah of Dakota Lithium batteries – additional panels recommended for colder climates, faster charge time, or winter activities). Designed for decades of rugged use in extreme conditions, this flexible, marine grade solar panel is waterproof, flexible for curved roofs and boat decks. Universal installation hardware included.

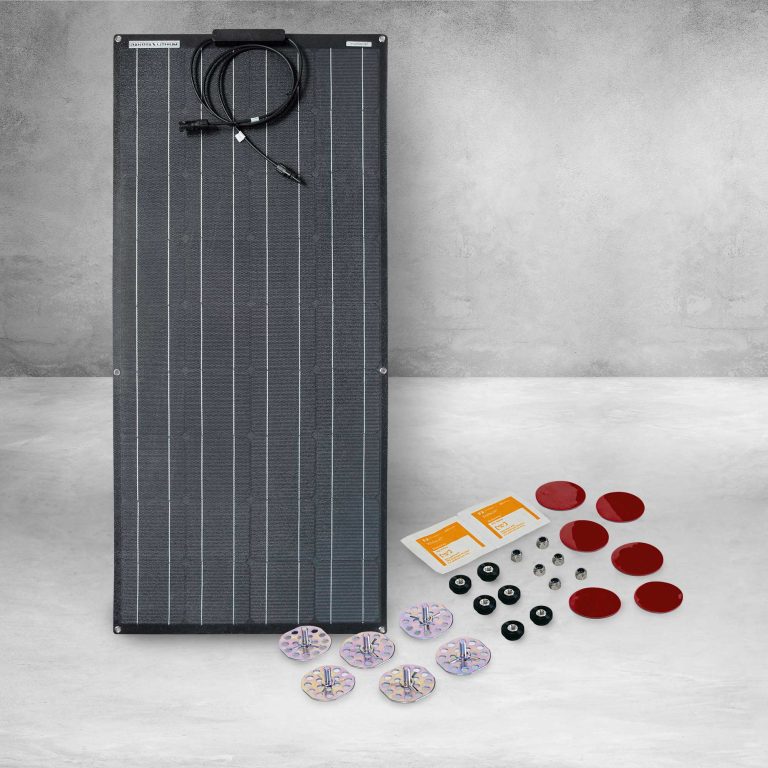

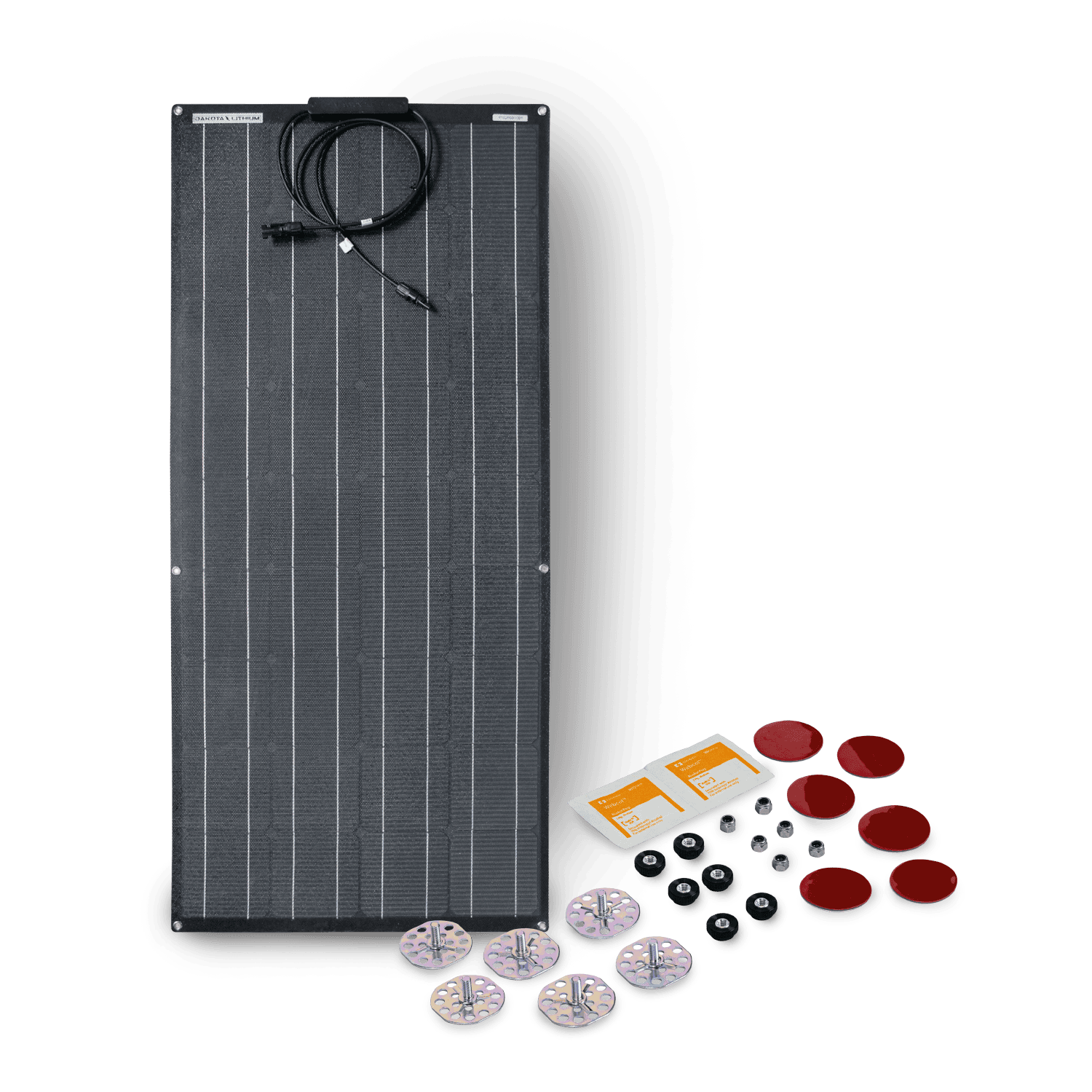

100-Watt Dakota Lithium Solar Kit Includes:

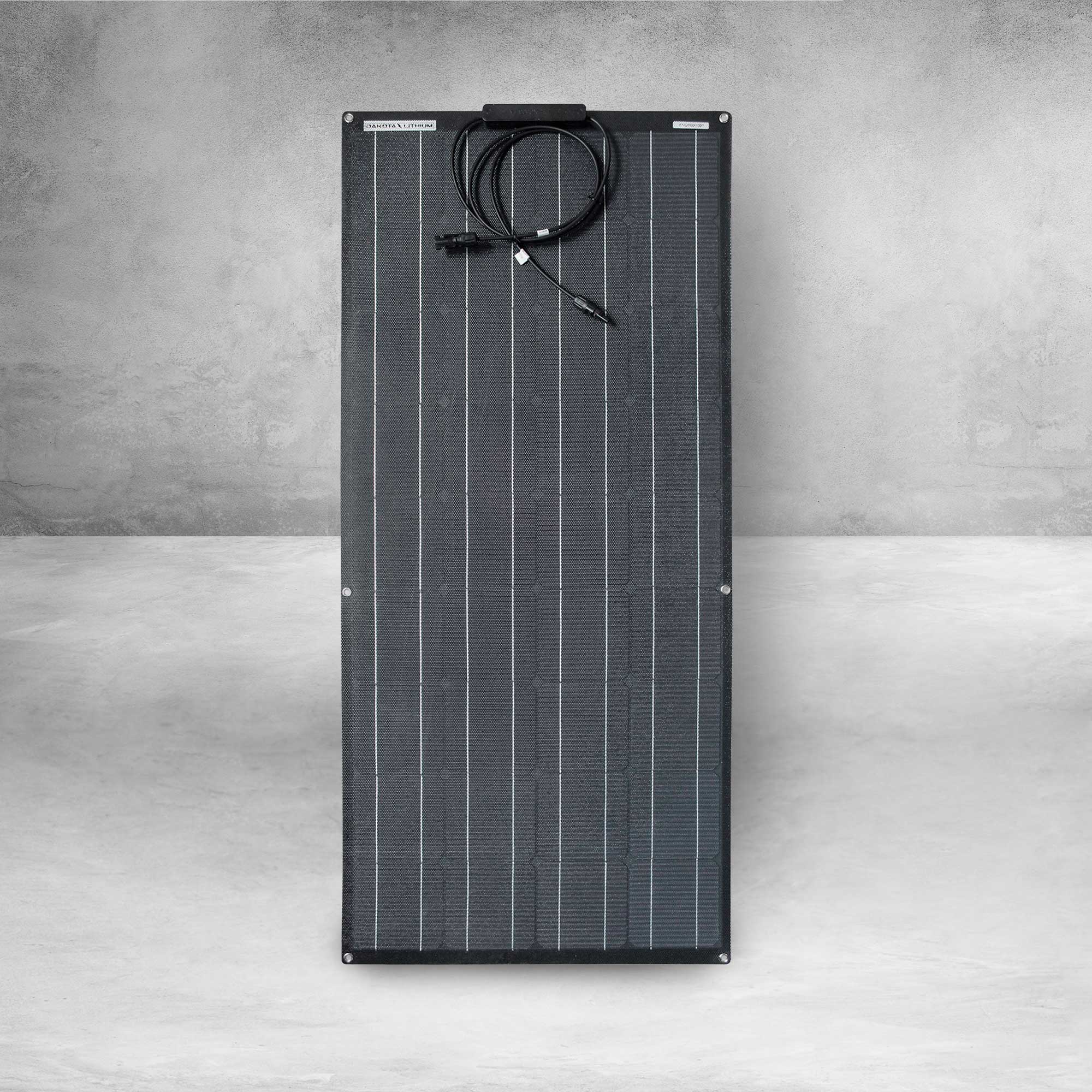

100-Watt Dakota Lithium Solar Panel
Quick-connect solar plug
Stainless steel mounting hardware and double sided industrial welding tape. Easy installation on most surfaces.

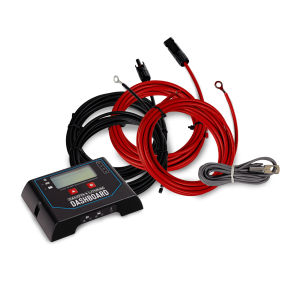

Please note: A lithium compatible solar charge controller is recommended for connecting solar panels to 12V Dakota Lithium batteries. Choose either the Solar Integration Kit & DL Dashboard Bluetooth Battery Monitor, or the Victron SmartSolar MPPT 75/15 Solar Charge Controller. Both are rated at 15 Amps and can support up to 300 watts of solar (3 x 100 watt panels).
See the Dakota Lithium Solar Mounting Instruction here.
Technical Specifications
-
Max Power (Pmax):
100 Watts power output
-
Generates 5.56 amps:
5.56 amps peak power generation. Latitude and season will impact solar panel output. If you spend a lot of time winter camping in northern latitudes you may want to think about adding an additional panel
-
Max Power Voltage:
18 Volts (V). Can be connected directly to the battery for simple and smaller systems. A solar charge controller is highly recommended since it lowers the voltage to 14.4V and greatly increases the efficiency of the system.
-
Simple Installation:
Installation is a breeze with the pre-assembled mounting hardware and wiring. Add a DL Dashboard integration kit for a solar charge controller, battery monitor, and additional wiring harness.
-
Mounting Hardware Included:
Dakota Lithium's innovative mounting hardware lets you to mount the panels wherever you need them, and the stainless steel mounting hardware ensure your panels won’t budge in route—no matter how far off-road you go. Additional double sided industrial welding tape is included as an alternative to using the hardware, and may be preferable on curved surfaces like boat decks or airstream trailers.
-
Flexible and Durable:
Semi-flexible, marine grade solar panel on a ruggedized waterproof backing. Optimal for rooftops and boat decks. Not designed for walking on. Foot traffic will reduce the lifespan and warranty of the panel.
-
How Long to Charge My Battery?:
Divide the Ah (capacity) of your battery by 5 to determine how many hours to charge your battery.
-
Cable / Wiring:
3 ft wire harness with waterproof MC4 connectors.
-
Size:
47.25 in (1200.15 mm) x 21.25 in (539.75 mm) x 0.1 in (3 mm) per panel
-
Weight:
5 lbs
-
Maximum Power Voltage:
18 Volts
-
Waterproof Rating:
IP67 Marine grade waterproof rating for use on boats, RVs, and rooftops in the rain
