Dakota Lithium 12v 23Ah Off-Grid Power System - Dakota Lithium Batteries

FREE Shipping & 11 Year Battery Warranty

FREE Shipping & 11 Year Battery Warranty

Perfect for Working Remotely & Construction Sites

Dakota Lithium 12v 23Ah Off-Grid Power System

(2 reviews)
  • Free Shipping to Lower 48 & Canada
  • 11 Year Battery Warranty
  • Back in Stock!
Ah 23 54 100
Add to cart »

Dakota Lithium 12v 23Ah Off-Grid Power System

(2 customer reviews)

$549$1,099

-

Work remotely and work from anywhere with a Dakota Lithium battery, multi-function inverter, and folding solar panel. Built for your mobile or outdoor home office, constructions site, or anywhere you need reliable backup power.

Need tons of power? Bulk pricing discount
Need tons of power? Bulk pricing discount
QuanitityPrice
For larger quantities contact sales@dakotalithium.com
200%
Twice the Power
of Traditional Batteries
1/2
Half the Weight
5X
Charges 5 X Faster
4X
Lasts 4X as long
$$$
Greatest Lifetime Value

Specifications

Storage Capacity

23 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 23 amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.

Voltage

12.8V Normal operating voltage

Energy (23Ah Battery)

294 Watts (Wh)

Terminals (23Ah Battery)

M6 terminals (posts that screw in). When used in salt water environments we recommend applying a small amount of dielectric grease on the threads of each terminal. It helps extend the lifespan. (Recommended Torque 5 ft lbs, Max Torque 9 ft lbs)

Size (23Ah Battery)

7.125 in (181mm) L x 3.03 in (77mm) W x 6.57 in (167mm) H

Weight (23Ah Battery)

6.4 lbs (2.9Kg). That's 60% lighter than a SLA battery.

Lifecycles (battery lifespan)

Up to 80% capacity for 2,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.

Operating temperature

Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20'F min, +120'F max optimal operating temps (battery performs well down to -20'F). Avoid charging below 32'F.

Discharge

24 A max continuous, 60 A max pulse (<3 sec). The flat discharge voltage curve provides a 75% bigger capacity then a SLA 23Ah battery. Please note: a single battery is only appropriate for trolling motors with <20 lbs of thrust. For trolling motors with 20 to 45lbs of thrust a single DL 54Ah battery is required. Or you can combine two batteries in parallel to create a 48 amp continuous discharge rate and 46 Ah of capacity. This provides the amps necessary to run the larger motor, increases runtime and lifespan of the battery.

Charge

12 A max, 14.4 V max recommended, 15 V max. Please note: this battery should be charged using a LiFePO4 compatible charger. A SLA charger may work, but will reduce performance and lifespan of the battery.

Includes active BMS protection

Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.

Charger Included

12v LiFePO4 charger included

NOT for Starting Engines

This is a deep cycle 12v battery. Not designed for starting gasoline engines.

Folding Solar Panel Included

50 watt solar panel included. Solar panels folds out and includes a stand. Rugged mil-spec nylon outer case when folded.

Inverter Included

300 watt Dakota Lithium inverter allow you to use 12V Dakota Lithium batteries to power household electronics that require 120V AC (the wall plug in your home).

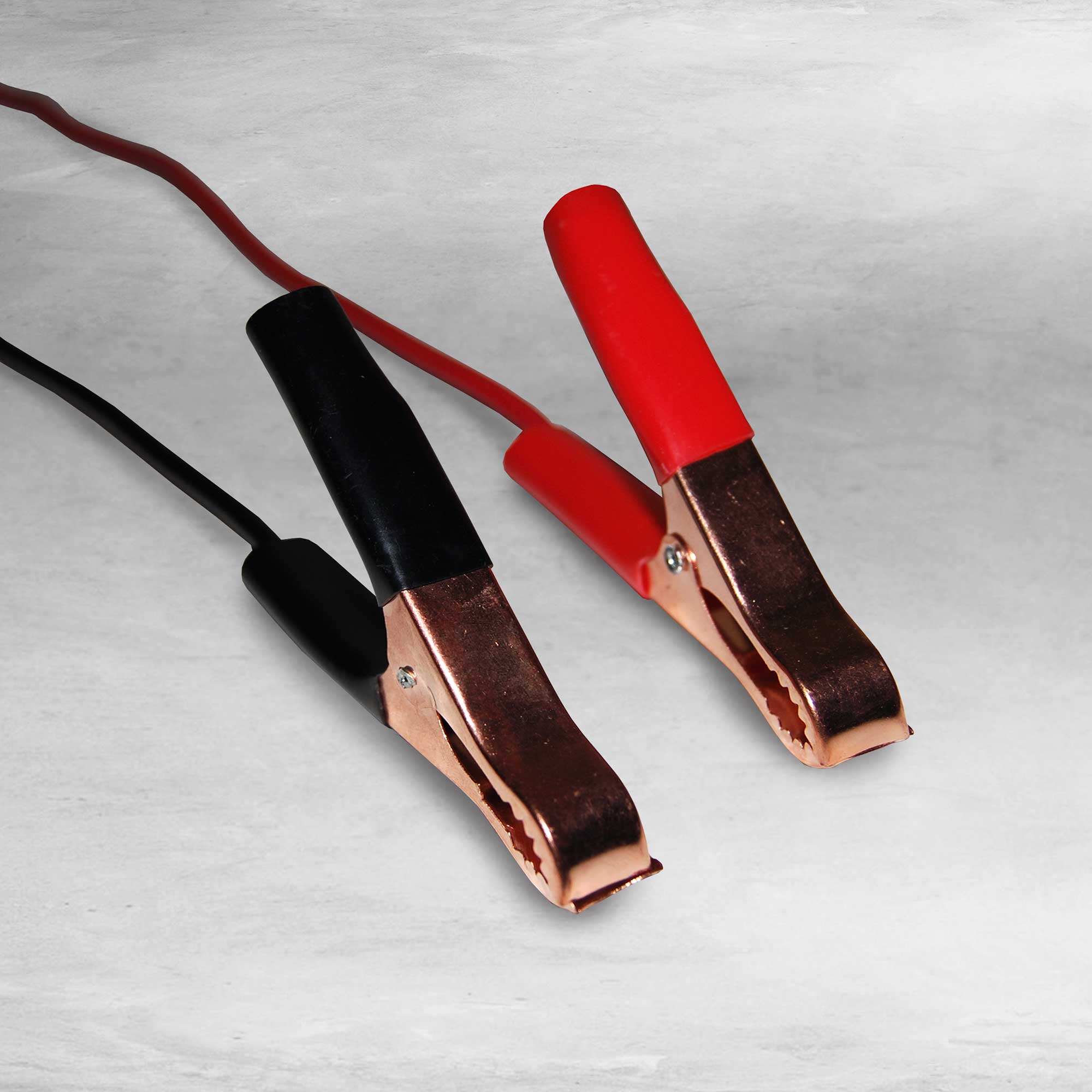

Wiring Kit included

Inverter included alligator clips and cig port adapter for use with your car. Solar panel includes alligator clips. Wiring kit is optimized for a quick set up and take down to make the kit mobile. For permanent installation, like in a truck or job site ring terminals are recommended.

Warranty

11 year best in class warranty on all Dakota Lithium batteries. 1 year warranty on inverter & solar panels.

Suitable for:

  • Small Off Grid Electrical Systems
  • Working Remotely
  • Charging power tools
  • Charging multiple devices at the same time
  • Personal electronics
  • Construction sites
  • Backup & Emergency Power
  • Outdoor Home Office
  • Contractor & work trucks
  • Deep Cycle Applications Only. Not for starting gasoline engines
