11 Year Warranty
  • Dakota Lithium 24V 60Ah Deep Cycle Marine Trolling Motor Battery Set
Perfect for 24v Trolling Motors

Dakota Lithium 24V 60Ah Deep Cycle Marine Trolling Motor Battery Set

(41 reviews)
  • On Sale! $300 Off
  • Free Shipping to Lower 48 & Canada
  • 11 Year Warranty
  • Free 24V 5 amp LiFePO4 charger included
Add to cart »

Dakota Lithium 24V 60Ah Deep Cycle Marine Trolling Motor Battery Set

(41 customer reviews)



The 24v DL 60Ah battery set is optimal for 24 volt trolling motors w/ <80 lbs of thrust, or boats where weight is at a premium. Ideal for deep cycle applications in marine environments where you need lots of power for a long time.

Available on backorder

SKU: PID12V60AHX2TM Categories: , Tag:
Need tons of power? Bulk pricing discount
Need tons of power? Bulk pricing discount
For larger quantities contact sales@dakotalithium.com
Twice the Power
of Traditional Batteries
Half the Weight
Charges 5 X Faster
Lasts 4X as long
Greatest Lifetime Value


11 Year Warranty

World beating, best in class, eleven year manufacturer defect warranty.

Storage Capacity

60 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 60 amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.


24V - This set is of two batteries is intended for 24V applications. (Dakota Lithium 12V batteries can be used in series for up to 48V systems)


1382 Watts (Wh)


F12 terminals (posts that screw in). Easy to adapt to different connection needs. (Max torque 15 ft. lbs.)


9.01” x 5.43” x 8.38” (229 x 138 x 213 mm)


17.6 lbs (8 Kg). That's 60% lighter then a SLA battery.

Lifecycles (battery lifespan)

Up to 80% capacity for 2,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.

Operating temperature

Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20'F min, +120'F max optimal environmental operating temps


60 A max continuous, 100 A max pulse 10 second pulse, 1,000CCA peak pulse. The flat discharge voltage curve provides a 75% bigger capacity then a SLA 50Ah battery.


15 A max, 14 V max recommended, 15 V max. Included is a LiFePO4 compatible charger.

Includes active BMS protection

Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.

Charger Included

24V 5A LiFePO4 charger included

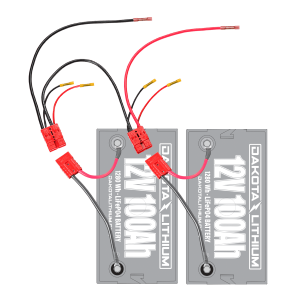

Connect Ease Wiring Kit Recommended

This battery package is a set of 12V batteries to be wired in series. Connect ease wiring kits provide easy installation and quick removal for charging.

Engine Starting Power

Each single 12V battery has 1,000 CCA of engine starting power, allowing you to jump start your boat engine from your trolling motor battery.

Suitable for:

  • Trolling Motors #FishLonger
  • Marine Applications
  • 12V Trolling Motors
  • Link in Series for 24V, 36V, 48V
  • LiFePO4 Replacement for SLA 12v
  • Compatible with onboard charging
  • Excellent for Minnkota Motors
  • Preferred Upgrade for Garmin Motors
  • Ideal for Lowrance Motors
  • Compatible with all trolling motors
  • Power Fish Finders, Flashers, & Boating Electronics

Experience the Dakota Lithium Difference

The DL+ 60Ah battery is built with Dakota Lithium's legendary LiFePO4 cells. 3,000+ recharge cycles (roughly 5 year lifespan at daily use) vs. 500 for other lithium batteries or lead acid. Optimal performance down to minus 20 degrees Fahrenheit (for winter warriors). Plus twice the power of lead-acid batteries at half the weight.
