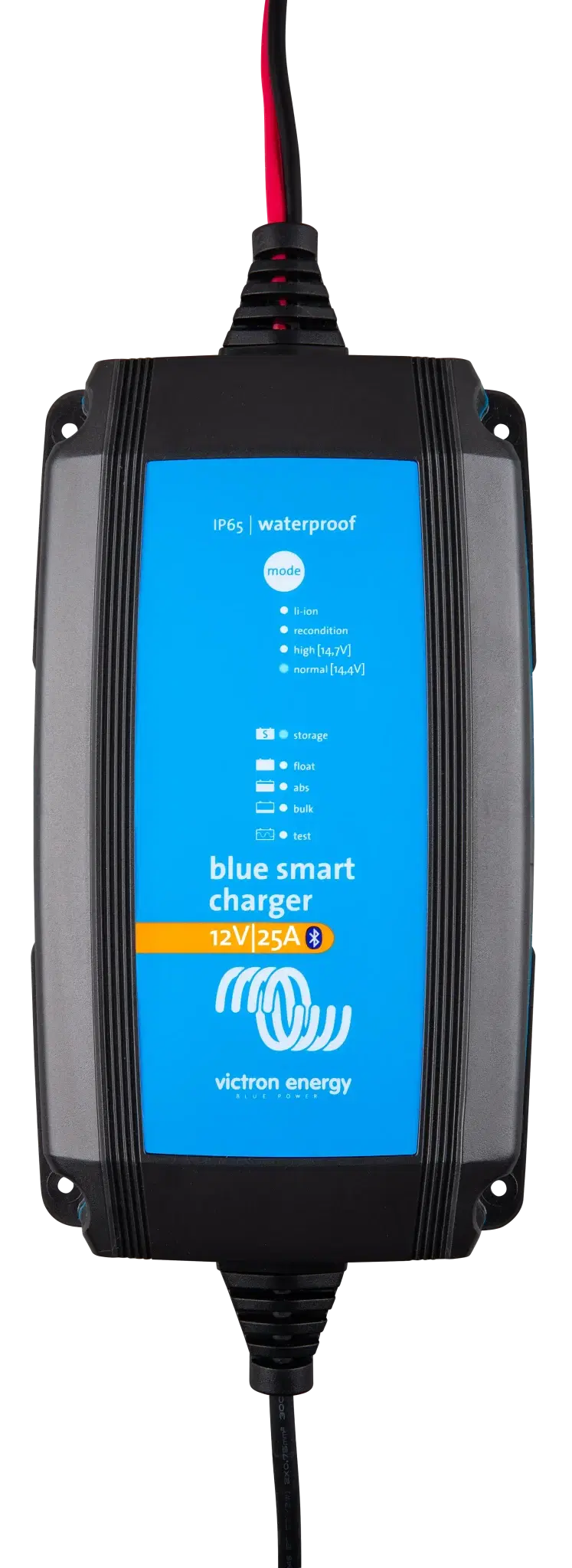

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Description
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
For more information on the see Victron Energy® Blue Smart IP65 Charger 12/25 + DC Connector
Product Manual and Data Sheet
Technical Specifications
-
All Victron Products Available:
Dakota Lithium is a Victron distributor and sells a curated catalog of recommended items. All Victron products are available to order, contact sales@dakotalithium.com
-
Dimensions (h x w x d):
3.0x5.5x9.4 inch
-
Battery-connection:
Black and red cable of 1.5 meter (4.9 feet)
-
120 V AC-connection:
1.8 meter cable (5.9 feet) with US NEMA 1-15 plug
-
Protection category:
IP65 (splash proof, dust proof and ignition protected)
-
Input voltage:
100-130 VAC
-
Charge voltage 'absorption':
Normal: 14.4V | High: 14.7V | Li-ion: 14.2V
-
Charge voltage 'float:
Normal: 13.8V | High: 13.8V | Li-ion: 13.5V
-
Charge voltage 'storage:
Normal: 13.2V | High: 13.2V | Li-ion: 13.5V
-
Charge current:
25 A
-
Protection:
Reverse polarity | Output short circuit | Over temperature
-
Operating temperature range:
-40 to +140°F (full rated output up to 90°F)
-
Safety:
UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
