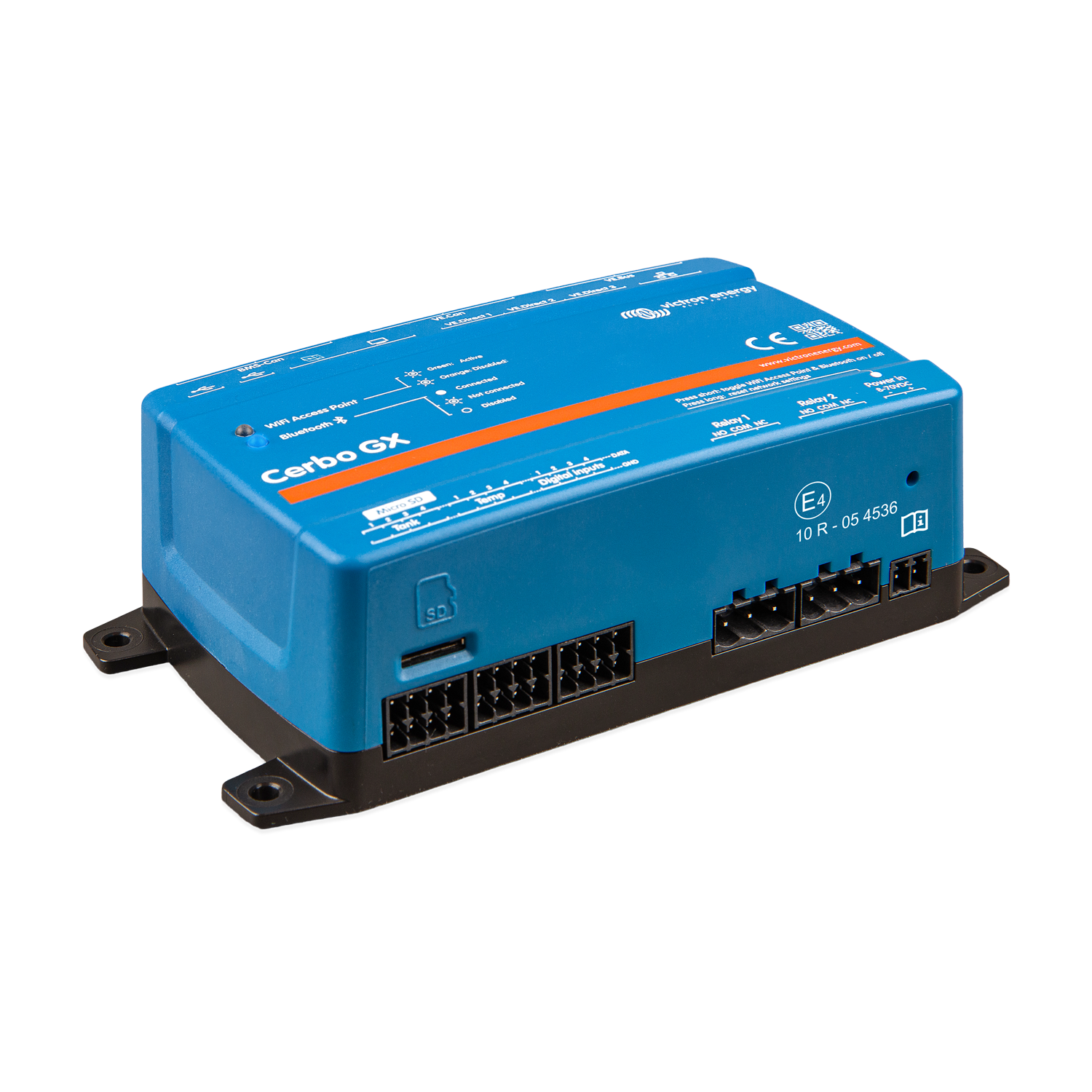

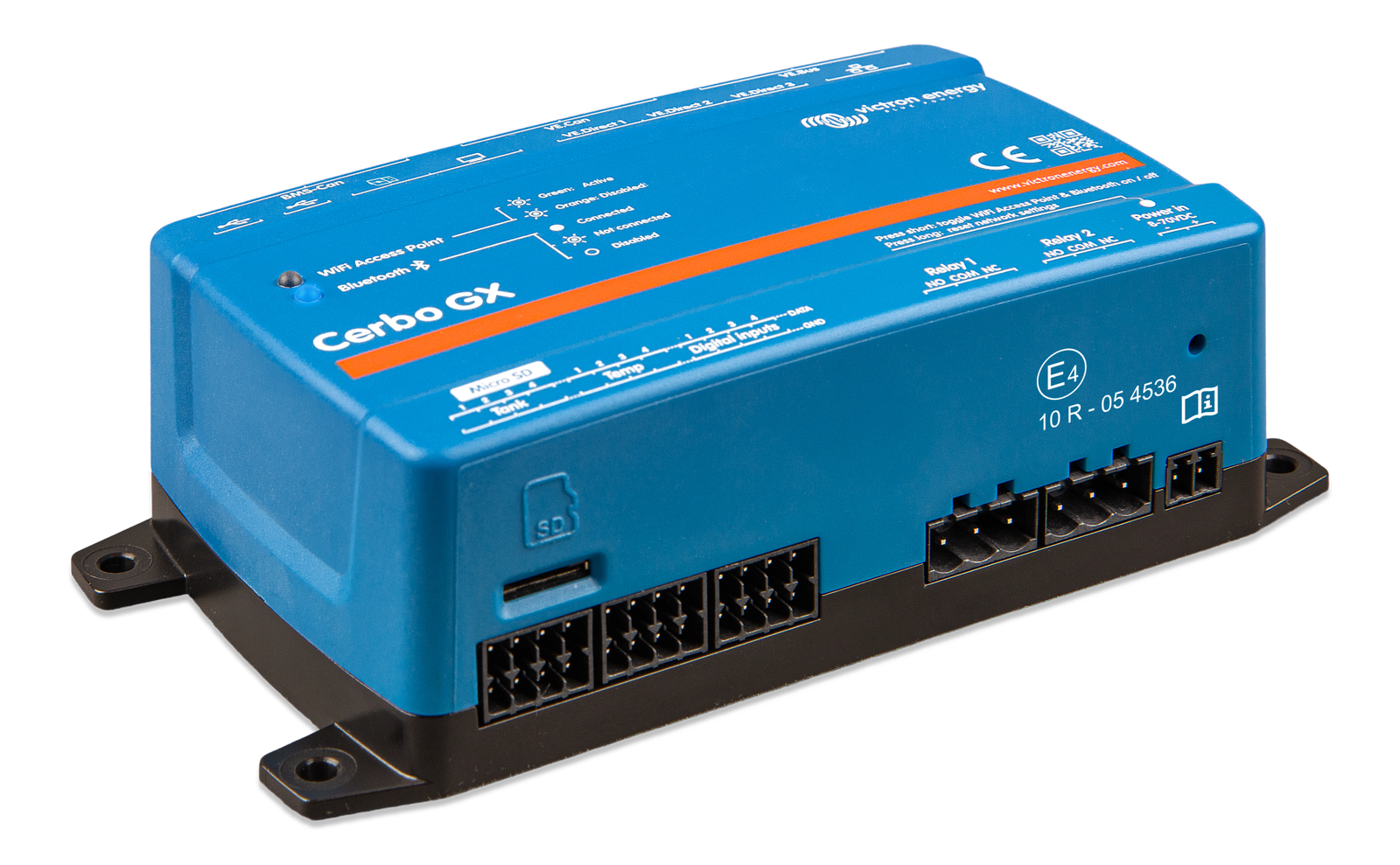

The Cerbo GX enables you to monitor and control your system from anywhere, at any time. It is designed to be a versatile centerpiece that seamlessly connects to your other Victron connected products and supported third party devices.
Description
The Cerbo GX is a flexible communication centre that will take remote monitoring to the next level. With all the hardware connection possibilities to fit your every need.
The Cerbo GX enables you to monitor and control your system from anywhere, at any time. It is designed to be a versatile centerpiece that seamlessly connects to your other Victron connected products and supported third party devices. Master remote systems with real-time monitoring, historical analysis, remote access and control with the Victron Remote Monitoring (VRM) portal and VictronConnect app. Or simply connect a GX Touch display for direct control. With plenty of possibilities, the Cerbo GX puts the power in your hands.
For more information see the Cerbo GX Product Manual & Data Sheet
Technical Specifications
-
All Victron Products Available:
Dakota Lithium is a Victron distributor and sells a curated catalog of recommended items. All Victron products are available to order, contact sales@dakotalithium.com
-
Supply voltage:
8 – 70 VDC
-
Power draw without GX Touch:
2.8 W @ 12 V
-
VE.Direct ports (always isolated):
3 (max. possible VE.Direct devices: 15)
-
VE.Bus (always isolated):
2 paralleled RJ45 sockets
-
Bluetooth:
Yes
-
Ethernet:
10/100 RJ45 socket - isolated except shield
-
Wifi:
Built-in
-
USB:
3 USB Host ports
-
Outer dimensions (h x w x d):
3.07 x 6.06 x 1.89 inches
-
Operating temperature range:
-4°F to 122°F (-20°C to 50°C)
-
IP Rating:
IP20
-
Safety:
IEC 62368-1
