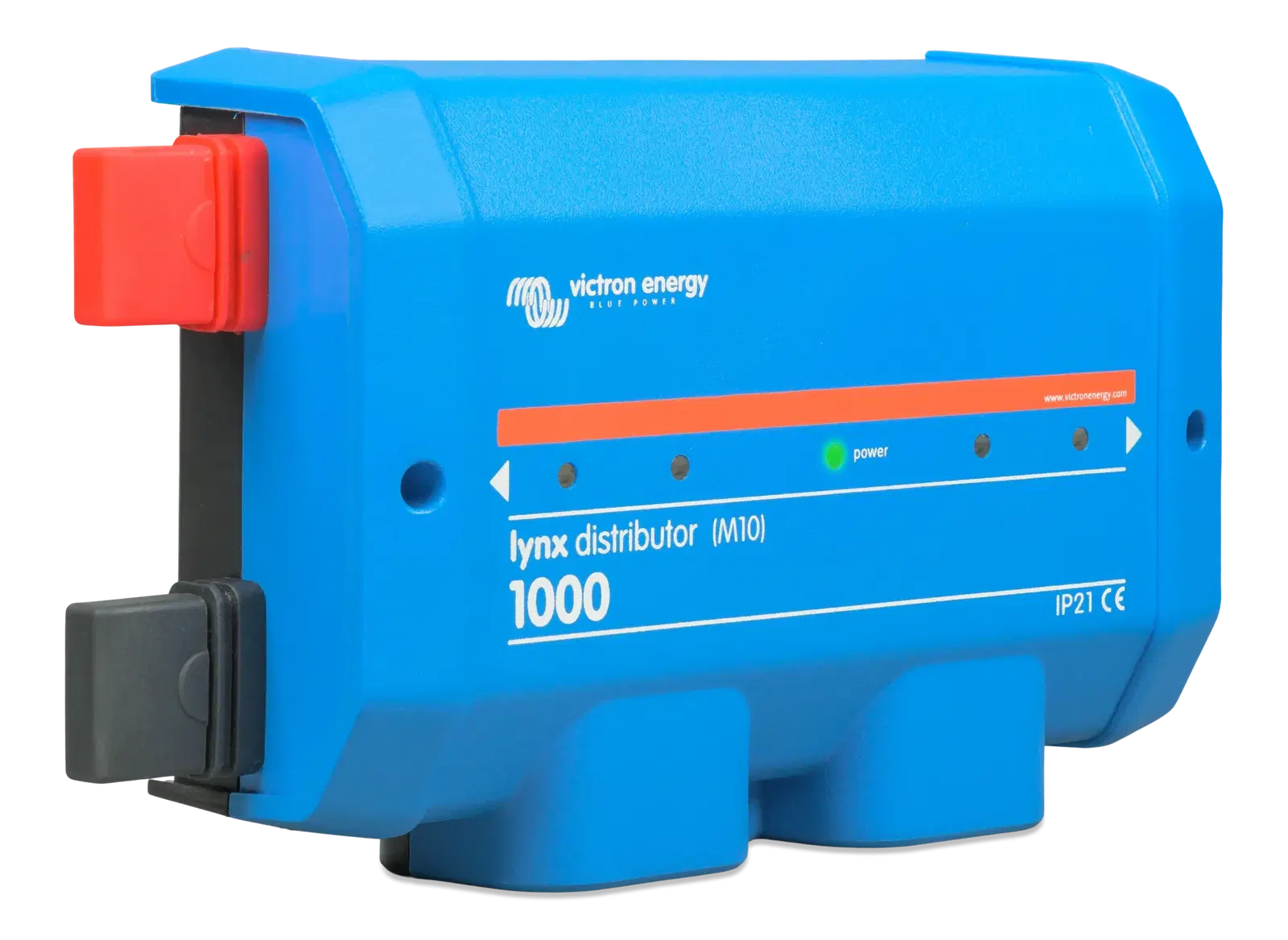

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front
Description
A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M10 model.
For More Information, see Lynx Distributor Product Manual
Technical Specifications
-
All Victron Products Available:
Dakota Lithium is a Victron distributor and sells a curated catalog of recommended items. All Victron products are available to order, contact sales@dakotalithium.com
-
Modular Design::
Part of the Lynx distribution system, allowing for flexible system expansion.
-
Busbar Size::
M10
-
Voltage Range::
Supports 12V, 24V, and 48V systems
-
Fuse Protection::
Includes four fuse-protected connections on the positive busbar.
-
LED Indicators::
Fuse status is indicated by LEDs on the front of the unit.
-
MEGA Fuses::
Designed to hold MEGA fuses.
-
Enclosure::
ABS enclosure with an IP22 protection rating.
-
Dimensions::
11.41 x 6.69 x 3.15 inches
-
Operating Temperature::
-40°F to 140°F (-40°C to 60°C)
-
Weight::
2.2 kg (4.85 lbs)
