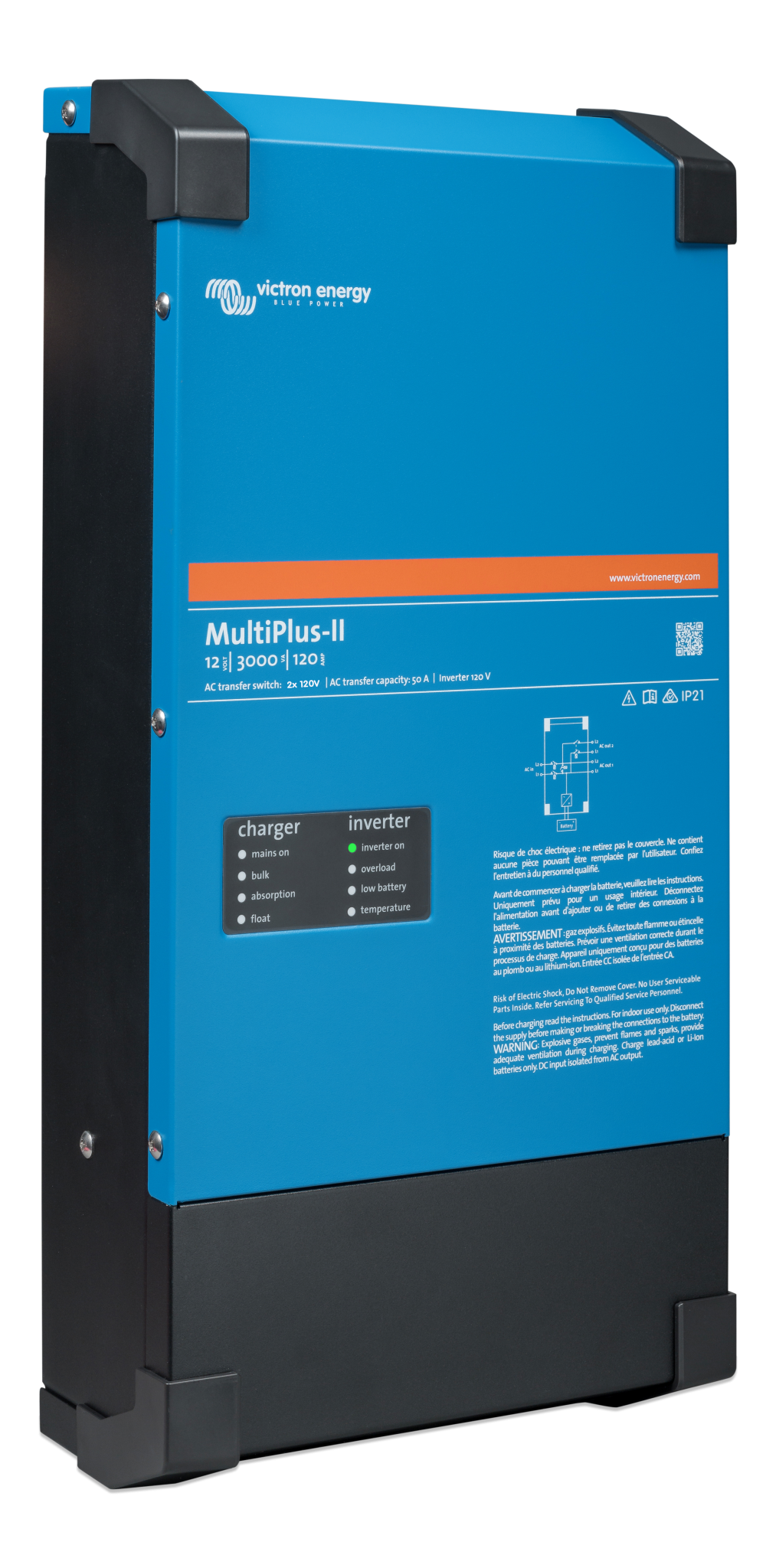

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
For more information see the MultiPlus II 12/3000/120-50 Product Manual & Data Sheet
Description
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
For more information see the MultiPlus II 12/3000/120-50 Product Manual & Data Sheet
Technical Specifications
-
All Victron Products Available:
Dakota Lithium is a Victron distributor and sells a curated catalog of recommended items. All Victron products are available to order, contact sales@dakotalithium.com
-
Output when in inverter mode:
Output voltage: 120 VAC ± 2 % | Frequency: 60 Hz ± 0,1 % (1)
-
Cont. output power at 25 °C:
3000 VA | 2400 W
-
Peak power:
5500 W
-
AC Input:
Split phase: 180-280 VAC 45 – 65 Hz | Single phase: 90-140 VAC 45 – 65 Hz
-
Operating temperature range:
-40 to +65 °C (-40 -150°F) Fan assisted cooling
-
Protection category:
IP22
-
Battery-connection:
2 M8 bolts
-
Weight:
22 kg (48 lb)
-
Dimensions (h x w x d):
23 x 11 x 6 inch
-
Safety:
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 458, and UL 1741
